99 0436 32 05 | binder

Jack, M12, 5 pole, screw connection, screw locking, straight, 99 0436 32 05

Order No.: 70P2380
EAN: 4099891677541
MPN:
99 0436 32 05
Series: 713

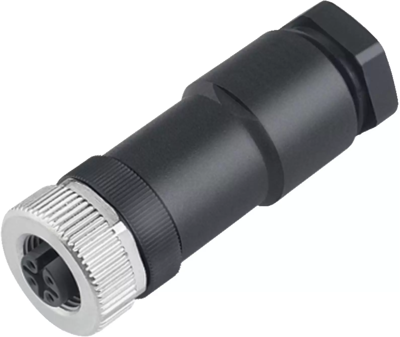

99 0436 32 05 binder Sensor-Actuator Connectors Image 1

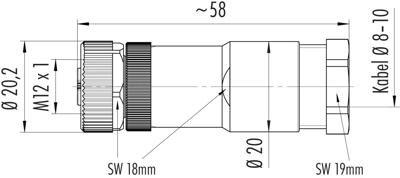

99 0436 32 05 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
17.3145 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
17.31 € *
Price list
Quantity
Price per unit*
1 pcs.
17.3145 €
10 pcs.
16.1007 €
50 pcs.
14.9821 €
100 pcs.
13.9349 €
*incl. VAT plus shipping costs
Subject to prior sale

Female cable connector, 99 0436 32 05, binder

M12-A Female cable connector, Contacts: 5, 6.0-8.0 mm, unshielded, screw clamp, IP67, UL, VDE.

Technical specifications
Filter Property Value
Coding A
Product type jack
Contact connection screw connection
Degree of protection (IP) IP67
Orientation straight
Additional parts equipped
contact surface gold-plated
Pin number 5 pole
Type of locking screw locking
Thread size M12
Assembly cable assembly
Logistics
Property Value
Country of origin HU
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
