99 0436 10 05 | binder

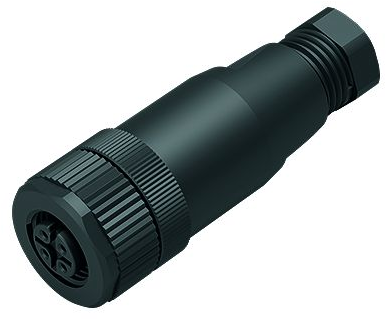

Jack, M12, 5 pole, screw connection, screw locking, straight, 99 0436 10 05
Unit Price (€ / pc.)
16.0769 € *
Available: 48 pcs.
Available in 5 Days: 10 pcs. - if ordered today
Total Price:
16.08 € *
Price list
Quantity
Price per unit*
1 pcs.
16.0769 €
10 pcs.
14.1372 €
50 pcs.
13.1852 €
150 pcs.
12.6021 €
500 pcs.
11.9595 €
*incl. VAT plus shipping costs
Subject to prior sale
Female cable connector, 99-0436-10-05, Franz Binder
M12-A Female connector, poles 5, 4.0-6.0 mm, unshielded, screw clamp, IP67, UL
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Assembly | cable assembly | |
| Pin number | 5 pole | |
| Contact connection | screw connection | |
| Product type | jack | |
| Degree of protection (IP) | IP67 | |
| Type of locking | screw locking | |
| Coding | A | |
| Thread size | M12 | |
| contact surface | CuSnZn |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
