99 0431 500 04 | binder

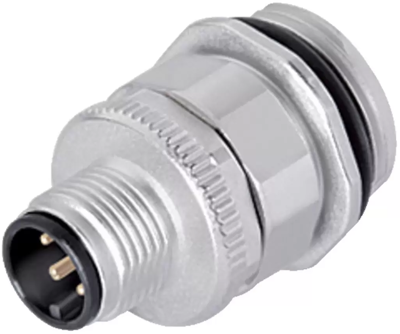

Panel plug, M12, 4 pole, screw connection, screw locking, straight, 99 0431 500 04
Unit Price (€ / pc.)
10.2221 € *
Available: 7 pcs.
Total Price:
10.22 € *
Price list
Quantity
Price per unit*
1 pcs.
10.2221 €
10 pcs.
9.6033 €
50 pcs.
8.0325 €
100 pcs.
7.4494 €
*incl. VAT plus shipping costs
Subject to prior sale
Panel mount connector, 99 0431 500 04, Franz Binder
M12-A Male panel mount connector, Contacts: 4, unshielded, screw clamp, IP67, UL, M20x1.5, for the power supply.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 4 pole | |
| Degree of protection (IP) | IP67 | |
| Assembly | panel mounting | |
| Coding | A | |
| contact surface | gold-plated | |
| Orientation | straight | |
| Type of locking | screw locking | |
| Contact connection | screw connection | |
| Thread size | M12 | |
| Product type | panel plug |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
