99 0430 57 04 | binder

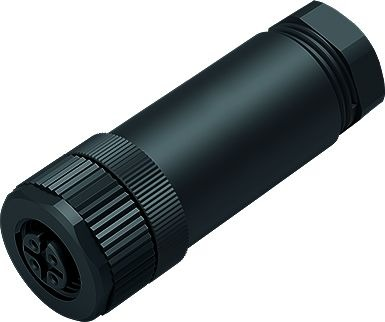

Jack, M12, 4 pole, screw connection, screw locking, straight, 99 0430 57 04
Unit Price (€ / pc.)
12.4474 € *
Available: 119 pcs.
Available in 5 Days: 94 pcs. - if ordered today
Total Price:
12.45 € *
Price list
Quantity
Price per unit*
1 pcs.
12.4474 €
10 pcs.
10.9718 €
50 pcs.
10.1983 €
150 pcs.
9.7699 €
500 pcs.
9.2463 €
*incl. VAT plus shipping costs
Subject to prior sale
Female cable connector, 99-0430-57-04, Franz Binder
M12-A Female connector, poles 4, 6.0-8.0 mm, unshielded, screw clamp, IP67, UL
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | CuSnZn | |
| Coding | A | |
| Degree of protection (IP) | IP67 | |
| Orientation | straight | |
| Contact connection | screw connection | |
| Thread size | M12 | |
| Type of locking | screw locking | |
| Assembly | cable assembly | |
| Pin number | 4 pole | |
| Product type | jack |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
