99 0430 286 04 | binder

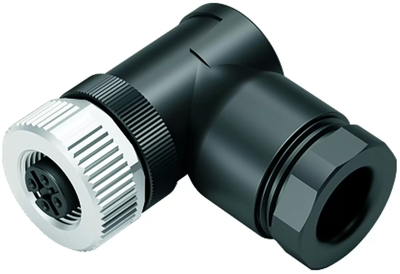

Angle coupling, M12, 4 pole, screw connection, screw locking, angled, 99 0430 286 04

Order No.: 70P2379
EAN: 4099891677534
MPN:
99 0430 286 04
Series: 713
99 0430 286 04 binder Sensor-Actuator Connectors Image 1
99 0430 286 04 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
14.4942 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
14.49 € *
Price list
Quantity
Price per unit*
1 pcs.
14.4942 €
10 pcs.
13.4708 €
50 pcs.
12.5307 €
100 pcs.
11.6501 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor actuator cable, 99 0430 286 04, binder

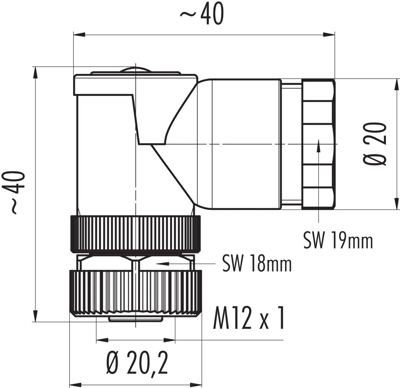

M12-A Male duo connector - female angled connector, Contacts: 4, 2 x 2: 1.0-3.0 mm / Ø 4.0-5.0 mm, unshielded, screw clamp, IP67.

Technical specifications
Pin number 4 pole
Type of locking screw locking
Additional parts equipped
Contact connection screw connection
Product type angle coupling
Coding A
Assembly cable assembly
Orientation angled
Degree of protection (IP) IP67
Thread size M12
Logistics
Customs tariff number 85369010
Country of origin DE
Compliance
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
