99 0430 161 04 | binder

Jack, M12, 3 pole, screw connection, screw locking, angled, 99 0430 161 04

Order No.: 70P1006
EAN: 4099891674625
MPN:
99 0430 161 04
Series: 713

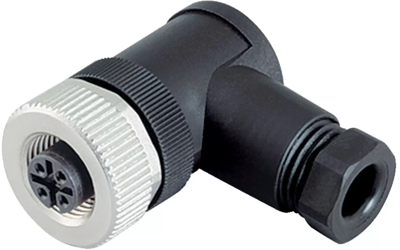

99 0430 161 04 binder Sensor-Actuator Connectors Image 1

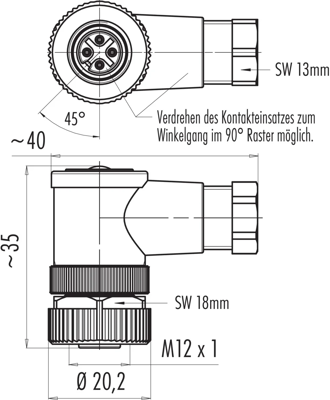

99 0430 161 04 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
12.4831 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
12.48 € *
Price list
Quantity
Price per unit*
1 pcs.
12.4831 €
10 pcs.
11.6025 €
50 pcs.
10.8052 €
100 pcs.
9.7104 €
*incl. VAT plus shipping costs
Subject to prior sale

Female angled connector, 99 0430 161 04, binder

M12-A Female angled connector, Contacts: 3, 6.0-8.0 mm, unshielded, screw clamp, IP67, UL, PG 9.

Technical specifications
Filter Property Value
Product type jack
Degree of protection (IP) IP67
Orientation angled
Pin number 3 pole
Coding A
Additional parts equipped
Contact connection screw connection
contact surface CuSnZn
Assembly cable assembly
Thread size M12
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
