99 0430 12 04 | binder

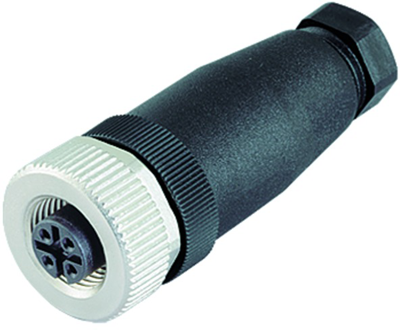

Jack, M12, 4 pole, screw connection, screw locking, straight, 99 0430 12 04
Unit Price (€ / pc.)
11.4835 € *
Available: 45 pcs.
Available in 5 Days: 100 pcs. - if ordered today
Total Price:
11.48 € *
Price list
Quantity
Price per unit*
1 pcs.
11.4835 €
10 pcs.
10.1031 €
50 pcs.
9.4129 €
150 pcs.
8.9964 €
500 pcs.
8.5442 €
*incl. VAT plus shipping costs
Subject to prior sale
Circular connector for sensor, M12, type Binder 713.
Rugged, water-proof design. Non-shielded. With screw lock; Conductor cross-sections: max. 0.75 mm². Cable outlet: 6.0 to 8.0 mm. Rated voltage: 250 V. Rated current (+40 °C): 4.0 A. Test surge voltage: 2950 V. Contact resistance: < 8.0 mohm. Insulation resistance: > 10 Gohm. Degree of protection (IEC 60529): IP 67. Degree of soiling: 3. Overvoltage category: II. Male/Female contact material: copper zinc. Finish: CuSnZn. Housing, straight/angled: PBT/PA 66. Operating temperatures: - 40 to +85 °C. Certifications: UL.
Female cable connectors.
Technical attributes (index: type, number of poles, cable entry): 99-0430-12-04, 4-pole, 6.0 to 8.0 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Type of locking | screw locking | |
| Coding | A | |
| Product type | jack | |
| Contact connection | screw connection | |
| Additional parts | equipped | |
| Assembly | cable assembly | |
| Degree of protection (IP) | IP67 | |
| Orientation | straight | |
| Thread size | M12 | |
| Pin number | 4 pole | |
| contact surface | CuSnZn |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
