99 0429 92 04 | binder

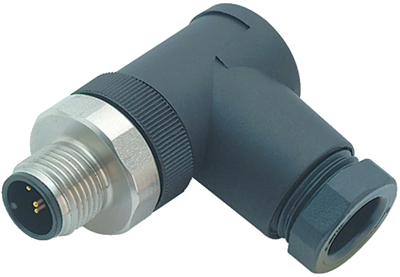

Angle plug, M12, 4 pole, screw connection, screw locking, angled, 99 0429 92 04
Unit Price (€ / pc.)
18.2070 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
18.21 € *
Price list
Quantity
Price per unit*
1 pcs.
18.2070 €
10 pcs.
16.9337 €
50 pcs.
15.7556 €
100 pcs.
14.6489 €
*incl. VAT plus shipping costs
Subject to prior sale
Male angled connector, 99 0429 92 04, binder
M12-A Male angled connector, Contacts: 4, 4.0-6.0 mm, unshielded, screw clamp, IP67, UL.
Technical specifications
| Pin number | 4 pole | |
| Type of locking | screw locking | |
| Additional parts | equipped | |
| Contact connection | screw connection | |
| Product type | angle plug | |
| Coding | A | |
| Assembly | cable assembly | |
| Orientation | angled | |
| Degree of protection (IP) | IP67 | |
| Thread size | M12 | |
| contact surface | gold-plated |
Download
Logistics
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
