99 0429 69 04 | binder

Angle plug, M12, 4 pole, screw connection, screw locking, angled, 99 0429 69 04

Order No.: 70P1003
EAN: 4099891674595
MPN:
99 0429 69 04
Series: 713

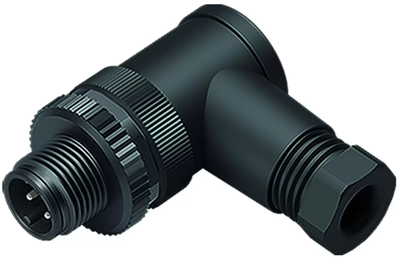

99 0429 69 04 binder Sensor-Actuator Connectors Image 1
99 0429 69 04 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
11.6739 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
11.67 € *
Price list
Quantity
Price per unit*
1 pcs.
11.6739 €
10 pcs.
10.8528 €
50 pcs.
10.0912 €
100 pcs.
9.0916 €
*incl. VAT plus shipping costs
Subject to prior sale

Male angled connector, 99 0429 69 04, binder

M12-A Male angled connector, Contacts: 4, 6.0-8.0 mm, unshielded, screw clamp, IP67, UL.

Technical specifications
Pin number 4 pole
Type of locking screw locking
Additional parts equipped
Contact connection screw connection
Product type angle plug
Coding A
Assembly cable assembly
Orientation angled
Degree of protection (IP) IP67
Thread size M12
contact surface CuSnZn
Logistics
Customs tariff number 85369010
Country of origin DE
Compliance
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
