99 0429 58 04 | binder
Angle plug, M12, 4 pole, screw connection, screw locking, angled, 99 0429 58 04
Unit Price (€ / pc.)
14.1491 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
14.15 € *
Price list
Quantity
Price per unit*
1 pcs.
14.1491 €
10 pcs.
13.1733 €
50 pcs.
12.2451 €
100 pcs.
11.3883 €
*incl. VAT plus shipping costs
Subject to prior sale

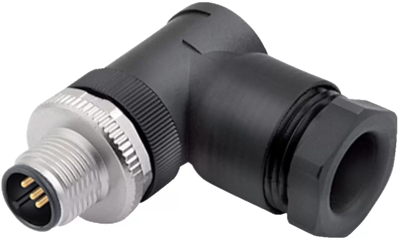

Male angled connector, 99 0429 58 04, binder
M12-A Male angled connector, Contacts: 4, 8.0-10.0 mm, unshielded, screw clamp, IP67, UL, VDE, for the power supply.
Technical specifications
| Version | angle plug | |
| Pin number | 4 pole | |
| Thread size | M12 | |
| Coding | A | |
| Type of locking | screw locking | |
| Orientation | angled | |
| Contact connection | screw connection | |
| contact surface | gold-plated | |
| Additional parts | equipped | |
| Assembly | cable assembly | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
