99 0429 287 04 | binder
Plug, M12, 4 pole, screw connection, screw locking, straight, 99 0429 287 04
Unit Price (€ / pc.)
18.6354 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
18.64 € *
Price list
Quantity
Price per unit*
1 pcs.
18.6354 €
10 pcs.
17.5168 €
50 pcs.
16.4577 €
100 pcs.
15.4581 €
*incl. VAT plus shipping costs
Subject to prior sale

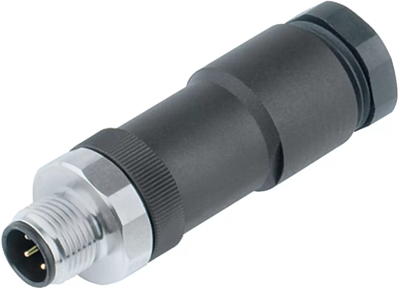

Male cable duo connector, 99 0429 287 04, binder
M12-A Male cable duo connector, Contacts: 4, 2 x 2: 1.0-3.0 mm / Ø 4.0-5.0 mm, unshielded, screw clamp, IP67, UL.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coding | A | |
| Orientation | straight | |
| Contact connection | screw connection | |
| Pin number | 4 pole | |
| Product type | plug | |
| Degree of protection (IP) | IP67 | |
| contact surface | gold-plated | |
| Type of locking | screw locking | |
| Additional parts | equipped | |
| Assembly | cable assembly | |
| Thread size | M12 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
