99 0429 27 04 | binder
Plug, M12, 3 pole, screw connection, screw locking, angled, 99 0429 27 04
Unit Price (€ / pc.)
12.0428 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
12.04 € *
Price list
Quantity
Price per unit*
1 pcs.
12.0428 €
10 pcs.
11.1979 €
50 pcs.
10.4125 €
100 pcs.
9.3772 €
*incl. VAT plus shipping costs
Subject to prior sale

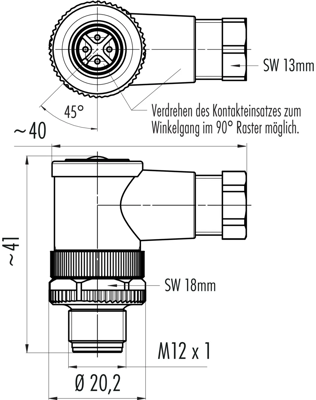

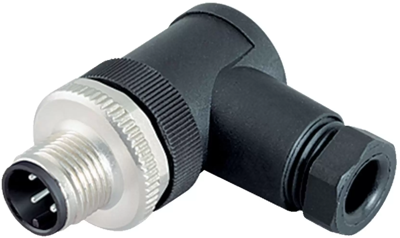

Male angled connector, 99 0429 27 04, binder
M12-A Male angled connector, Contacts: 3, 4.0-6.0 mm, unshielded, screw clamp, IP67, UL.
Technical specifications
| Pin number | 3 pole | |
| Degree of protection (IP) | IP67 | |
| Assembly | cable assembly | |
| Orientation | angled | |
| Coding | A | |
| Product type | plug | |
| Additional parts | equipped | |
| Type of locking | screw locking | |
| Contact connection | screw connection | |
| Thread size | M12 | |
| contact surface | CuSnZn |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
