99 0429 158 04 | binder

Plug, M12, 3 pole, screw connection, screw locking, straight, 99 0429 158 04

Order No.: 70P0992
EAN: 4099891674489
MPN:
99 0429 158 04
Series: 713

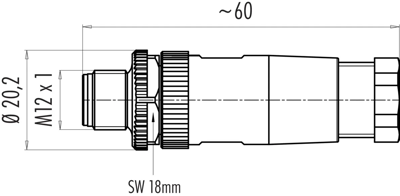

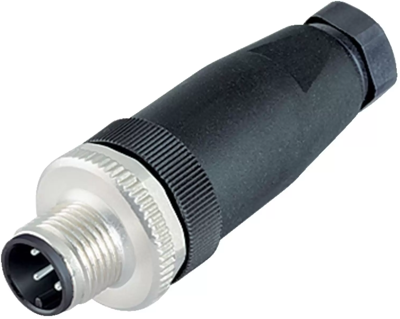

99 0429 158 04 binder Sensor-Actuator Connectors Image 1
99 0429 158 04 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
10.9599 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
10.96 € *
Price list
Quantity
Price per unit*
1 pcs.
10.9599 €
10 pcs.
10.1983 €
50 pcs.
9.4724 €
100 pcs.
8.5323 €
*incl. VAT plus shipping costs
Subject to prior sale

Male cable connector, 99 0429 158 04, binder

M12-A Male cable connector, Contacts: 3, 6.0-8.0 mm, unshielded, screw clamp, IP67, UL.

Technical specifications
Filter Property Value
Thread size M12
Additional parts equipped
Pin number 3 pole
Orientation straight
Degree of protection (IP) IP67
Type of locking screw locking
Assembly cable assembly
Contact connection screw connection
contact surface CuSnZn
Product type plug
Coding A
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
