86 7019 0002 00003 | binder

Panel plug, M8, 3 pole, solder connection, snap-in/screw locking, straight, 86 7019 0002 00003

Order No.: 70P1245
EAN: 4099891676049
MPN:
86 7019 0002 00003
Series: 718

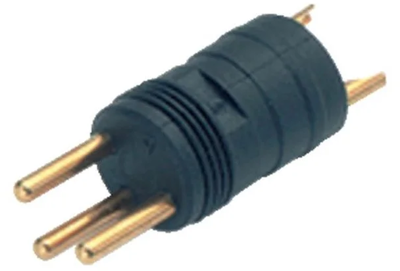

86 7019 0002 00003 binder Sensor-Actuator Connectors Image 1
86 7019 0002 00003 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
2.6180 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
2.62 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6180 €
10 pcs.
2.3562 €
50 pcs.
2.0825 €
100 pcs.
1.7493 €
*incl. VAT plus shipping costs
Subject to prior sale

Male receptacle, 86 7019 0002 00003, binder

M8 Male receptacle, Contacts: 3, unshielded, solder, IP67, for M8 tube.

Technical specifications
Pin number 3 pole
Type of locking snap-in/screw locking
Additional parts equipped
Contact connection solder connection
Product type panel plug
Orientation straight
Degree of protection (IP) IP65
Thread size M8
contact surface gold-plated
Logistics
Customs tariff number 85369010
Country of origin DE
Compliance
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
