86 6620 1120 00404 | binder

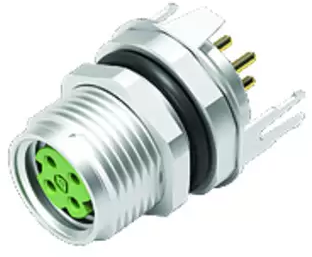

Mounting socket, M8, 4 pole, THT, Screw locking, straight, 86 6620 1120 00404
Images may differ
Unit Price (€ / pc.)
18.5640 € *
Available: 3 pcs.
Leadtime: 8 Weeks **
Total Price:
18.56 € *
Quantity
Price per unit*
1 pcs.
18.5640 €
10 pcs.
16.3506 €
50 pcs.
15.2320 €
150 pcs.
14.5537 €
500 pcs.
13.8040 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Panel mount connector, 86 6620 1120 00404, Franz Binder
M8-D Female panel mount connector, Contacts: 4, shieldable, THT, IP67.
Technical specifications
| Version | mounting socket | |
| Thread size | M8 | |
| Coding | D | |
| Contact connection | THT | |
| contact surface | gold-plated | |
| Assembly | panel mounting | |
| Orientation | straight | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP67 | |
| Type of locking | Screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
