86 6618 1120 00008 | binder
Panel socket, M8, 8 pole, THT, screw locking, straight, 86 6618 1120 00008
Unit Price (€ / pc.)
22.4315 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
22.43 € *
Price list
Quantity
Price per unit*
1 pcs.
22.4315 €
10 pcs.
21.0749 €
50 pcs.
19.8254 €
100 pcs.
18.6354 €
*incl. VAT plus shipping costs
Subject to prior sale

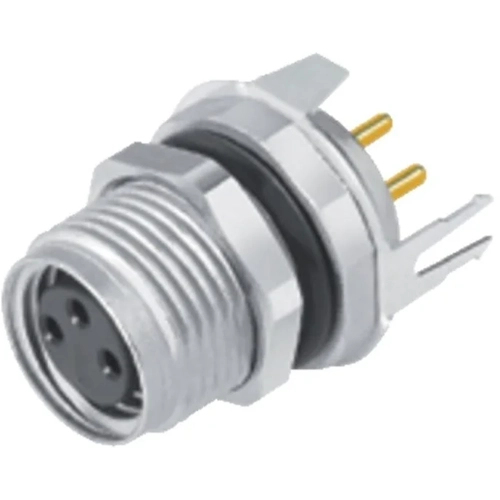

Female panel mount connector, 86 6618 1120 00008, binder
M8 Female panel mount connector, Contacts: 8, shieldable, THT, IP67, M10x0.75, front fastened.
Technical specifications
| Pin number | 8 pole | |
| Type of locking | screw locking | |
| Additional parts | equipped | |
| Contact connection | THT | |
| Product type | panel socket | |
| Assembly | panel mounting | |
| Orientation | straight | |
| Degree of protection (IP) | IP67 | |
| Thread size | M8 | |
| contact surface | gold-plated |
Download
Logistics
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
