86 6518 1123 00003 | binder

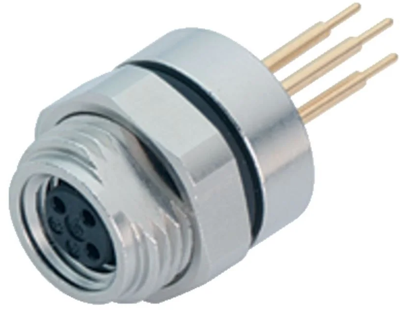

Panel socket, M8, 3 pole, THT, screw locking, straight, 86 6518 1123 00003
Unit Price (€ / pc.)
10.4601 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
10.46 € *
Price list
Quantity
Price per unit*
1 pcs.
10.4601 €
10 pcs.
9.4129 €
50 pcs.
8.6632 €
100 pcs.
7.6279 €
*incl. VAT plus shipping costs
Subject to prior sale
Female panel mount connector, 86 6518 1123 00003, binder

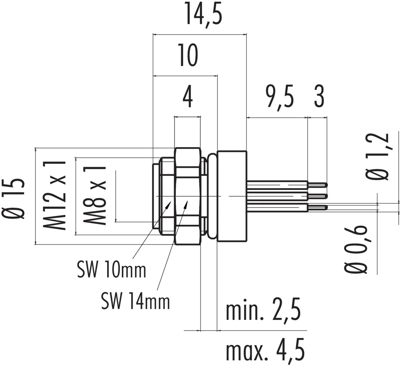

M8 Female panel mount connector, Contacts: 3, unshielded, THT, IP67, M12x1.0, front fastened.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Thread size | M8 | |
| Additional parts | equipped | |
| Pin number | 3 pole | |
| Orientation | straight | |
| Degree of protection (IP) | IP67 | |
| Type of locking | screw locking | |
| Assembly | panel mounting | |
| Contact connection | THT | |
| contact surface | gold-plated | |
| Product type | panel socket |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
