86 6321 1121 00404 | binder
Panel plug, M8, 4 pole, THT, screw locking, angled, 86 6321 1121 00404
Unit Price (€ / pc.)
17.9095 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
17.91 € *
Price list
Quantity
Price per unit*
1 pcs.
17.9095 €
10 pcs.
16.6481 €
50 pcs.
15.4938 €
100 pcs.
14.4228 €
*incl. VAT plus shipping costs
Subject to prior sale

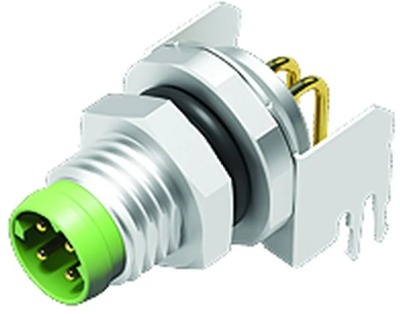

Male angled panel mount connector, 86 6321 1121 00404, binder
M8-D Male angled panel mount connector, Contacts: 4, shieldable, THT, IP67.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 4 pole | |
| Type of locking | screw locking | |
| Additional parts | equipped | |
| Contact connection | THT | |
| Product type | panel plug | |
| Coding | D | |
| Assembly | panel mounting | |
| Orientation | angled | |
| Degree of protection (IP) | IP67 | |
| Thread size | M8 | |
| contact surface | gold-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
