86 6321 1120 00404 | binder
Panel plug, M8, 4 pole, THT, screw locking, straight, 86 6321 1120 00404
Unit Price (€ / pc.)
13.6612 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
13.66 € *
Price list
Quantity
Price per unit*
1 pcs.
13.6612 €
10 pcs.
12.6973 €
50 pcs.
11.8048 €
100 pcs.
10.6386 €
*incl. VAT plus shipping costs
Subject to prior sale

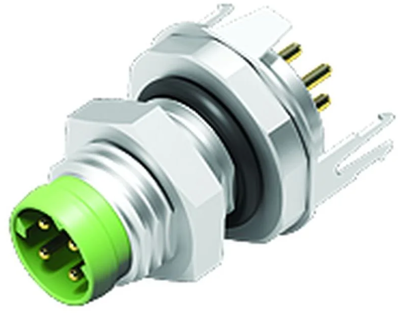

Male panel mount connector, 86 6321 1120 00404, binder
M8-D Male panel mount connector, Contacts: 4, shieldable, THT, IP67.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel plug | |
| Pin number | 4 pole | |
| Thread size | M8 | |
| Coding | D | |
| Type of locking | screw locking | |
| Orientation | straight | |
| Contact connection | THT | |
| contact surface | gold-plated | |
| Additional parts | equipped | |
| Assembly | panel mounting | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
