86 6319 1121 00005 | binder
Panel plug, M8, 5 pole, THT, snap-in/screw locking, angled, 86 6319 1121 00005
Unit Price (€ / pc.)
15.7437 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
15.74 € *
Price list
Quantity
Price per unit*
1 pcs.
15.7437 €
10 pcs.
14.6370 €
50 pcs.
13.6136 €
100 pcs.
12.6497 €
*incl. VAT plus shipping costs
Subject to prior sale

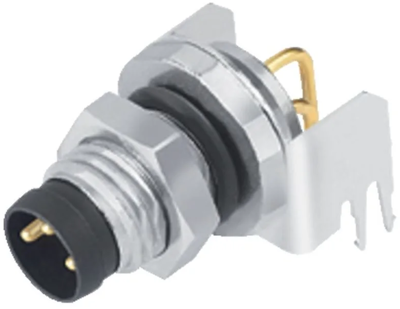

Male panel mount connector, 86 6319 1121 00005, binder
M8 Male panel mount connector, Contacts: 5, shieldable, THT, IP67, front fastened.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel plug | |
| Pin number | 5 pole | |
| Thread size | M8 | |
| Type of locking | snap-in/screw locking | |
| Orientation | angled | |
| Contact connection | THT | |
| contact surface | gold-plated | |
| Additional parts | equipped | |
| Assembly | panel mounting | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
