86 4832 3000 00008 | binder
Panel socket, M12, 8 pole, THT, screw locking, straight, 86 4832 3000 00008
Unit Price (€ / pc.)
11.4954 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
11.50 € *
Price list
Quantity
Price per unit*
1 pcs.
11.4954 €
10 pcs.
10.6862 €
50 pcs.
9.9365 €
100 pcs.
8.9369 €
*incl. VAT plus shipping costs
**Subject to prior sale

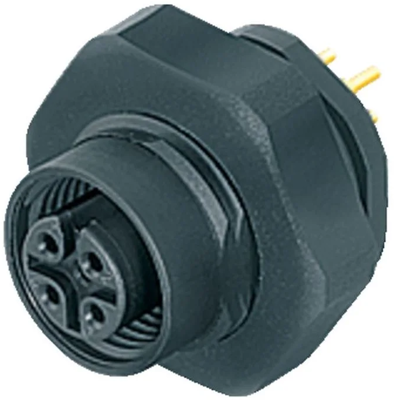

Female panel mount connector, 86 4832 3000 00008, binder
M12-A Female panel mount connector, Contacts: 8, unshielded, THT, IP67, UL, PG 9, front fastened.
Technical specifications
| Version | Einbaubuchse | |
| Pin number | 8-polig | |
| Thread size | M12 | |
| Coding | A | |
| Type of locking | Schraubverriegelung | |
| Orientation | gerade | |
| Contact connection | THT | |
| contact surface | vergoldet | |
| Additional parts | bestückt | |
| Assembly | Panelmontage | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
