86 4832 3000 00005 | binder
Panel socket, M12, 5 pole, THT, screw locking, straight, 86 4832 3000 00005
Unit Price (€ / pc.)
8.6513 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
8.65 € *
Price list
Quantity
Price per unit*
1 pcs.
8.6513 €
10 pcs.
7.7945 €
50 pcs.
6.8663 €
100 pcs.
6.1761 €
*incl. VAT plus shipping costs
Subject to prior sale

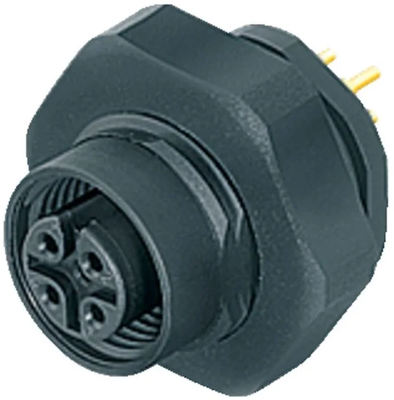

Female panel mount connector, 86 4832 3000 00005, binder
M12-A Female panel mount connector, Contacts: 5, unshielded, THT, IP67, UL, PG 9, front fastened.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | THT | |
| contact surface | gold-plated | |
| Thread size | M12 | |
| Orientation | straight | |
| Product type | panel socket | |
| Coding | A | |
| Assembly | panel mounting | |
| Type of locking | screw locking | |
| Pin number | 5 pole | |
| Degree of protection (IP) | IP67 | |
| Additional parts | equipped |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
