86 4531 1002 00005 | binder

Panel plug, M12, 5 pole, solder connection, screw locking, straight, 86 4531 1002 00005

Order No.: 70P1830
EAN: 4099891676650
MPN:
86 4531 1002 00005
Series: 763

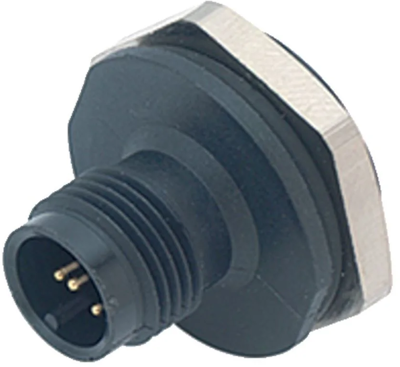

86 4531 1002 00005 binder Sensor-Actuator Connectors Image 1
86 4531 1002 00005 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
7.4732 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
7.47 € *
Price list
Quantity
Price per unit*
1 pcs.
7.4732 €
10 pcs.
6.7235 €
50 pcs.
5.9262 €
100 pcs.
5.3312 €
*incl. VAT plus shipping costs
Subject to prior sale

Male panel mount connector, 86 4531 1002 00005, binder

M12-A Male panel mount connector, Contacts: 5, unshielded, solder, IP67, UL, PG 13.5.

Technical specifications
Filter Property Value
Coding A
Thread size M12
Type of locking screw locking
Degree of protection (IP) IP67
Product type panel plug
Assembly panel mounting
Contact connection solder connection
Additional parts equipped
contact surface gold-plated
Pin number 5 pole
Orientation straight
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
