86 4531 1002 00004 | binder

Panel plug, M12, 4 pole, solder connection, screw locking, straight, 86 4531 1002 00004

Order No.: 66P2990
EAN: 4099889700282
MPN:
86 4531 1002 00004
Series: 763

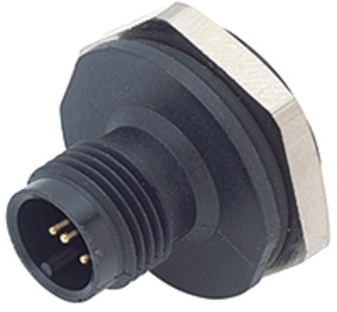

86 4531 1002 00004 binder Sensor-Actuator Connectors Image 1
86 4531 1002 00004 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
6.9615 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
6.96 € *
Price list
Quantity
Price per unit*
1 pcs.
6.9615 €
10 pcs.
6.2713 €
50 pcs.
5.5097 €
100 pcs.
4.7957 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor-actuator connector, 86-4531-1002-00004, BINDER

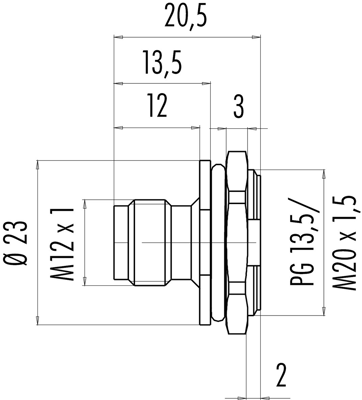

M12-A Male panel mount connector, Contacts: 4, unshielded, solder, IP67, UL, PG 13.5.

Features

  • Contact material: CuZn
  • Degree of protection: IP68
  • Pollution degree: 3
  • Overvoltage category: II
Technical specifications
Type of locking screw locking
contact surface gold-plated
Coding A
Degree of protection (IP) IP67
Assembly panel mounting
Contact connection solder connection
Pin number 4 pole
Version panel plug
Orientation straight
Thread size M12
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
