86 4232 1002 00008 | binder

Panel socket, M12, 8 pole, solder connection, screw locking, straight, 86 4232 1002 00008

Order No.: 70P1823
EAN: 4099891676582
MPN:
86 4232 1002 00008
Series: 763

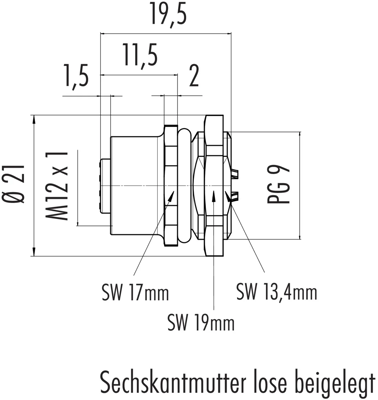

86 4232 1002 00008 binder Sensor-Actuator Connectors Image 1

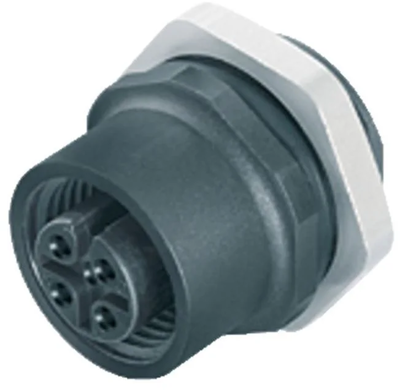

86 4232 1002 00008 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
11.7453 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
11.75 € *
Price list
Quantity
Price per unit*
1 pcs.
11.7453 €
10 pcs.
10.9242 €
50 pcs.
10.1626 €
100 pcs.
9.1392 €
*incl. VAT plus shipping costs
Subject to prior sale

Female panel mount connector, 86 4232 1002 00008, binder

M12-A Female panel mount connector, Contacts: 8, unshielded, solder, IP67, UL, PG 9.

Technical specifications
Pin number 8 pole
Type of locking screw locking
Additional parts equipped
Contact connection solder connection
Product type panel socket
Coding A
Assembly panel mounting
Orientation straight
Degree of protection (IP) IP67
Thread size M12
contact surface gold-plated
Logistics
Customs tariff number 85369010
Country of origin DE
Compliance
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
