86 0533 1120 00005 | binder
Panel plug, M12, 5 pole, THT, screw locking, straight, 86 0533 1120 00005
Unit Price (€ / pc.)
17.1122 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
17.11 € *
Price list
Quantity
Price per unit*
1 pcs.
17.1122 €
10 pcs.
15.9103 €
50 pcs.
14.8036 €
100 pcs.
13.7683 €
*incl. VAT plus shipping costs
Subject to prior sale

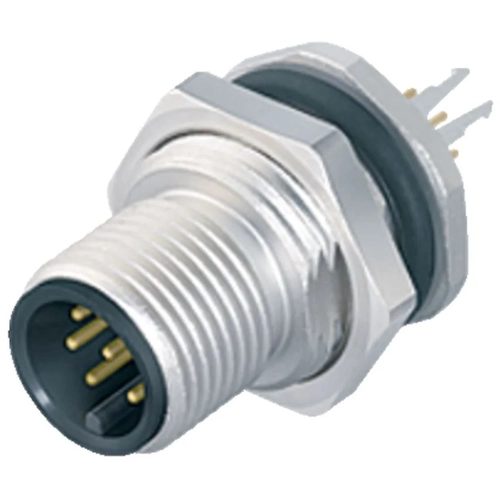

Male panel mount connector, 86 0533 1120 00005, binder

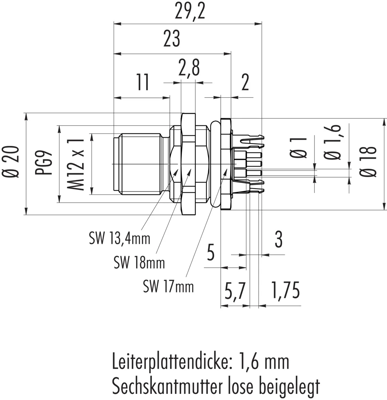

M12-B Male panel mount connector, Contacts: 5, shieldable, THT, IP68, UL, PG 9, front fastened.
Technical specifications
| Pin number | 5 pole | |
| Type of locking | screw locking | |
| Additional parts | equipped | |
| Contact connection | THT | |
| Product type | panel plug | |
| Coding | B | |
| Assembly | panel mounting | |
| Orientation | straight | |
| Degree of protection (IP) | IP68 | |
| Thread size | M12 | |
| contact surface | gold-plated |
Download
Logistics
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
