86 0532 1120 00008 | binder

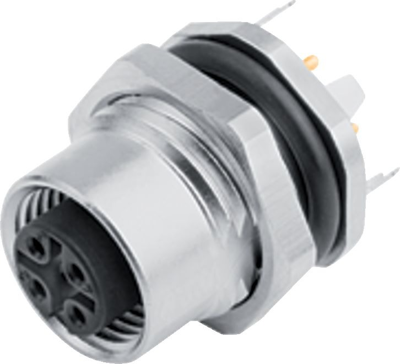

Panel socket, M12, 8 pole, THT, screw locking, straight, 86 0532 1120 00008
Unit Price (€ / pc.)
   23.2169 €  *
   Available: 4 pcs.
 Total Price:
  23.22 € *
  Price list
 Quantity
 Price per unit*
 1 pcs.
 23.2169 €
 10 pcs.
 20.4323 €
 50 pcs.
 19.0400 €
 150 pcs.
 18.2070 €
 500 pcs.
 17.2788 €
  *incl. VAT plus shipping costs
  Subject to prior sale
 Female panel mount connector, 86-0532-1120-00008, Franz Binder
M12-A Female connector, poles 8, shieldable, THT, IP68, UL, PG 9, front fastened
 Technical specifications

 | Filter | Property | Value |
|---|---|---|
| Contact connection | THT | |
| contact surface | gold-plated | |
| Assembly | panel mounting | |
| Coding | A | |
| Thread size | M12 | |
| Orientation | straight | |
| Degree of protection (IP) | IP68 | |
| Product type | panel socket | |
| Pin number | 8 pole | |
| Type of locking | screw locking |
 Download
  Logistics

 | Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
 Compliance

 | Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
