86 0532 1100 00012 | binder

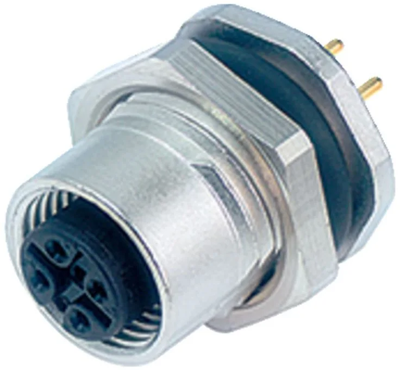

Panel socket, M12, 12 pole, THT, screw locking, straight, 86 0532 1100 00012

Order No.: 70P1801
EAN: 4099891676360
MPN:
86 0532 1100 00012
Series: 763
86 0532 1100 00012 binder Sensor-Actuator Connectors Image 1
86 0532 1100 00012 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
25.0257 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
25.03 € *
Price list
Quantity
Price per unit*
1 pcs.
25.0257 €
10 pcs.
23.5263 €
25 pcs.
22.1221 €
50 pcs.
20.7893 €
*incl. VAT plus shipping costs
Subject to prior sale

Female panel mount connector, 86 0532 1100 00012, binder

M12-A Female panel mount connector, Contacts: 12, unshielded, THT, IP68, UL, PG 9, front fastened.

Technical specifications
Filter Property Value
Coding A
Thread size M12
Assembly panel mounting
Degree of protection (IP) IP68
Orientation straight
Additional parts equipped
contact surface gold-plated
Contact connection THT
Type of locking screw locking
Pin number 12 pole
Product type panel socket
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
