86 0532 1000 00008 | binder

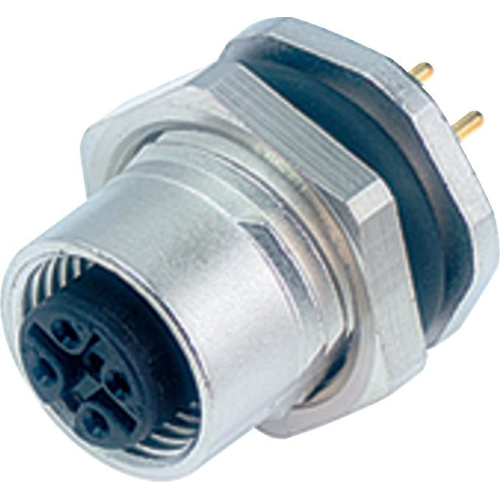

Panel socket, M12, 8 pole, THT, screw locking, straight, 86 0532 1000 00008
Unit Price (€ / pc.)
19.3851 € *
Available: 5 pcs.
Total Price:
19.39 € *
Price list
Quantity
Price per unit*
1 pcs.
19.3851 €
10 pcs.
17.0646 €
50 pcs.
15.9103 €
150 pcs.
15.1963 €
500 pcs.
14.4228 €
*incl. VAT plus shipping costs
Subject to prior sale
Female panel mount connector, 86-0532-1000-00008, Franz Binder
M12-A Female connector, poles 8, unshielded, THT, IP68, UL, PG 9, front fastened
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Type of locking | screw locking | |
| Coding | A | |
| Pin number | 8 pole | |
| Thread size | M12 | |
| contact surface | gold-plated | |
| Degree of protection (IP) | IP68 | |
| Contact connection | THT | |
| Product type | panel socket | |
| Assembly | panel mounting |
Download
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
