86 0531 1120 00005 | binder
Panel plug, M12, 5 pole, THT, screw locking, straight, 86 0531 1120 00005
Unit Price (€ / pc.)
13.5303 € *
Available: 19 pcs.
Total Price:
13.53 € *
Price list
Quantity
Price per unit*
1 pcs.
13.5303 €
10 pcs.
12.5783 €
50 pcs.
11.6858 €
100 pcs.
10.5196 €
*incl. VAT plus shipping costs
Subject to prior sale

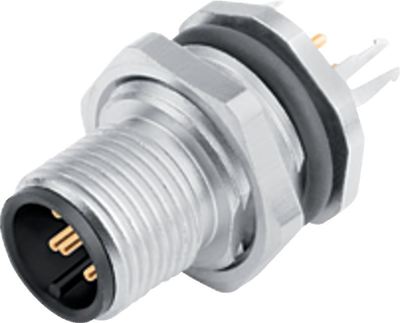

Male panel mount connector, 86-0531-1120-00005, Franz Binder
M12-A Male connector, poles 5, shieldable, THT, IP68, UL, PG 9, front fastened
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Type of locking | screw locking | |
| Coding | A | |
| Pin number | 5 pole | |
| Thread size | M12 | |
| contact surface | gold-plated | |
| Degree of protection (IP) | IP68 | |
| Contact connection | THT | |
| Product type | panel plug | |
| Assembly | panel mounting |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
