86 0232 0000 00008 | binder

Panel socket, M12, 8 pole, THT, screw locking, straight, 86 0232 0000 00008

Order No.: 70P1791
EAN: 4099891676261
MPN:
86 0232 0000 00008
Series: 763

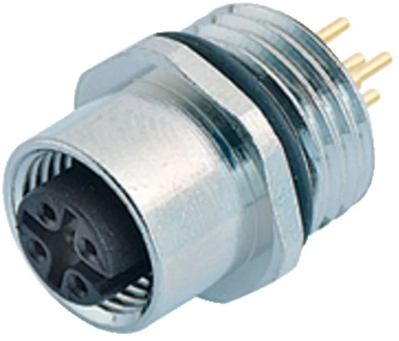

86 0232 0000 00008 binder Sensor-Actuator Connectors Image 1

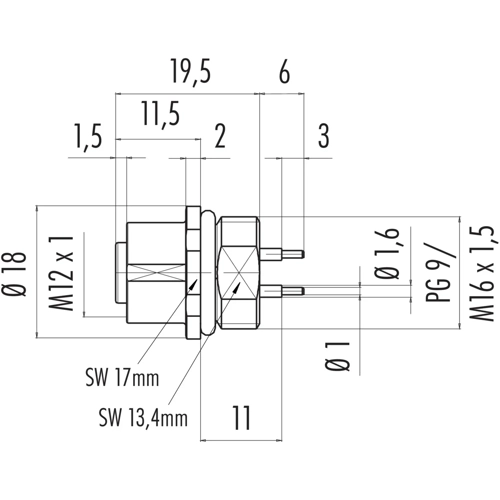

86 0232 0000 00008 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
16.5529 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
16.55 € *
Price list
Quantity
Price per unit*
1 pcs.
16.5529 €
10 pcs.
15.3986 €
50 pcs.
14.3157 €
100 pcs.
13.3280 €
*incl. VAT plus shipping costs
**Subject to prior sale

Female panel mount connector, 86 0232 0000 00008, binder

M12-A Female panel mount connector, Contacts: 8, unshielded, THT, IP68, UL, M16x1.5.

Technical specifications
Version panel socket
Pin number 8 pole
Thread size M12
Coding A
Type of locking screw locking
Orientation straight
Contact connection THT
contact surface gold-plated
Additional parts equipped
Assembly panel mounting
Degree of protection (IP) IP68
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
