86 0232 0000 00005 | binder

Panel socket, M12, 5 pole, THT, screw locking, straight, 86 0232 0000 00005

Order No.: 70P1790
EAN: 4099891676254
MPN:
86 0232 0000 00005
Series: 763

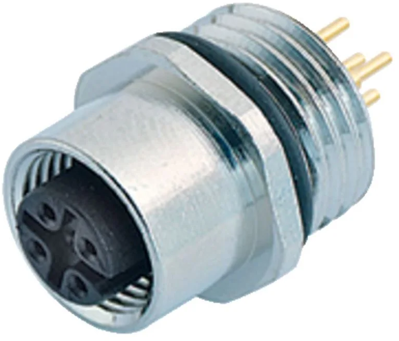

86 0232 0000 00005 binder Sensor-Actuator Connectors Image 1

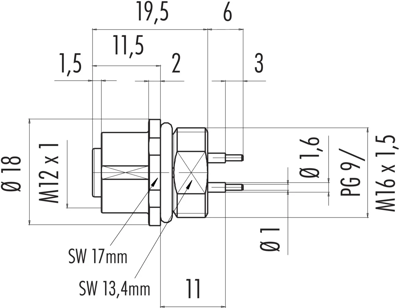

86 0232 0000 00005 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
12.0190 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
12.02 € *
Price list
Quantity
Price per unit*
1 pcs.
12.0190 €
10 pcs.
11.1741 €
50 pcs.
10.3887 €
100 pcs.
9.3653 €
*incl. VAT plus shipping costs
**Subject to prior sale

Female panel mount connector, 86 0232 0000 00005, binder

M12-A Female panel mount connector, Contacts: 5, unshielded, THT, IP68, UL, M16x1.5.

Technical specifications
Version panel socket
Pin number 5 pole
Thread size M12
Coding A
Type of locking screw locking
Orientation straight
Contact connection THT
contact surface gold-plated
Additional parts equipped
Assembly panel mounting
Degree of protection (IP) IP68
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
