86 0231 0002 00008 | binder
Panel plug, M12, 8 pole, solder connection, screw locking, straight, 86 0231 0002 00008
Unit Price (€ / pc.)
14.8750 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
14.88 € *
Price list
Quantity
Price per unit*
1 pcs.
14.8750 €
10 pcs.
13.8278 €
50 pcs.
12.8520 €
100 pcs.
11.9595 €
*incl. VAT plus shipping costs
Subject to prior sale

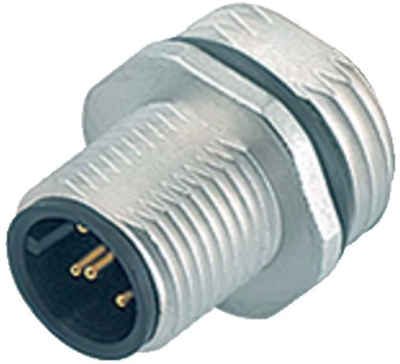

Male panel mount connector, 86 0231 0002 00008, binder

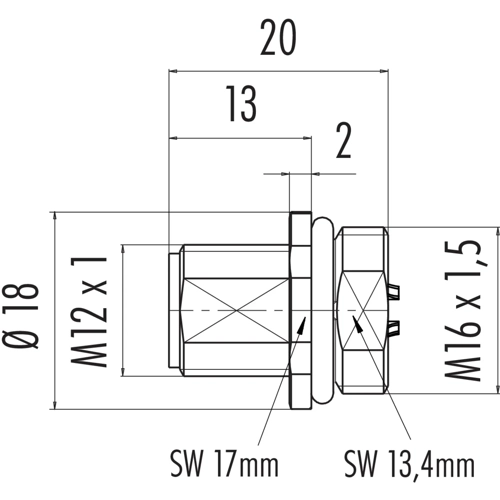

M12-A Male panel mount connector, Contacts: 8, unshielded, solder, IP68, UL, M16x1.5.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Assembly | panel mounting | |
| Coding | A | |
| Additional parts | equipped | |
| Thread size | M12 | |
| Orientation | straight | |
| Degree of protection (IP) | IP68 | |
| Product type | panel plug | |
| Pin number | 8 pole | |
| Type of locking | screw locking |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
