86 0132 0002 00008 | binder

Panel socket, M12, 8 pole, solder connection, screw locking, straight, 86 0132 0002 00008

Order No.: 70P1783
EAN: 4099891676186
MPN:
86 0132 0002 00008
Series: 763

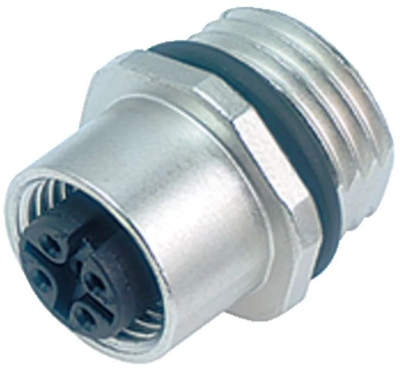

86 0132 0002 00008 binder Sensor-Actuator Connectors Image 1
86 0132 0002 00008 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
15.6366 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
15.64 € *
Price list
Quantity
Price per unit*
1 pcs.
15.6366 €
10 pcs.
14.5418 €
50 pcs.
13.5184 €
100 pcs.
12.5664 €
*incl. VAT plus shipping costs
Subject to prior sale

Female panel mount connector, 86 0132 0002 00008, binder

M12-A Female panel mount connector, Contacts: 8, unshielded, solder, IP68, UL, PG 9.

Technical specifications
Filter Property Value
Pin number 8 pole
Degree of protection (IP) IP68
Assembly panel mounting
Additional parts equipped
Coding A
contact surface gold-plated
Orientation straight
Type of locking screw locking
Contact connection solder connection
Thread size M12
Product type panel socket
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
