86 0132 0002 00005 | binder

Panel socket, M12, 5 pole, solder connection, screw locking, straight, 86 0132 0002 00005

Order No.: 66P2897
EAN: 4099889700220
MPN:
86 0132 0002 00005
Series: 763

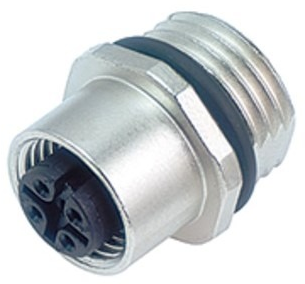

86 0132 0002 00005 binder Sensor-Actuator Connectors Image 1
86 0132 0002 00005 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
12.3165 € *
Available: 8 pcs.
Total Price:
12.32 € *
Price list
Quantity
Price per unit*
1 pcs.
12.3165 €
10 pcs.
10.8528 €
50 pcs.
10.0912 €
150 pcs.
9.6628 €
500 pcs.
9.1511 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor-actuator connector, 86-0132-0002-00005, BINDER

M12-A Female panel mount connector, Contacts: 5, unshielded, solder, IP68, UL, PG 9.

Features

  • Contact material: CuSn (Bronze)
  • Degree of protection: IP68
  • Pollution degree: 3
  • Overvoltage category: II
Technical specifications
Filter Property Value
Product type panel socket
Degree of protection (IP) IP68
Orientation straight
Pin number 5 pole
Contact connection solder connection
contact surface gold-plated
Assembly panel mounting
Thread size M12
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
