77 9840 0000 00005 | binder
Jack, M12, 5 pole, screw locking, straight, 77 9840 0000 00005
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
15.6961 € *
Standard delivery time from the manufacturer is: 15 Weeks
Total Price:
15.70 € *
Price list
Quantity
Price per unit*
1 pcs.
15.6961 €
10 pcs.
14.5894 €
50 pcs.
13.5779 €
100 pcs.
12.6140 €
*incl. VAT plus shipping costs
Subject to prior sale

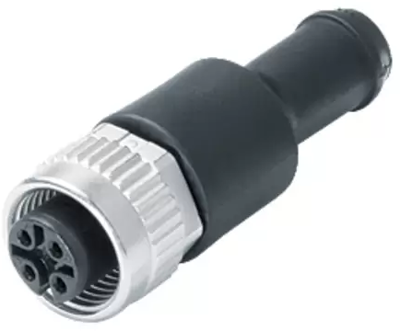

Female terminating connector, 77 9840 0000 00005, binder
M12-A Female terminating connector, Contacts: 5, unshielded, IP67, UL, CAN-Bus.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | jack | |
| Pin number | 5 pole | |
| Thread size | M12 | |
| Coding | A | |
| Type of locking | screw locking | |
| Orientation | straight | |
| contact surface | gold-plated | |
| Additional parts | equipped | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
