77 9835 0000 00004 | binder

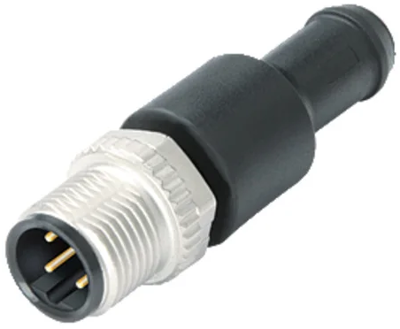

Plug, M12, 4 pole, screw locking, straight, 77 9835 0000 00004
Unit Price (€ / pc.)
21.0868 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
21.09 € *
Price list
Quantity
Price per unit*
1 pcs.
21.0868 €
10 pcs.
19.8135 €
50 pcs.
18.6235 €
100 pcs.
17.5049 €
*incl. VAT plus shipping costs
Subject to prior sale
Male terminating connector, 77 9835 0000 00004, binder
M12-B Male terminating connector, Contacts: 4, unshielded, IP68, UL, Profibus, PUR.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 4 pole | |
| Type of locking | screw locking | |
| Additional parts | equipped | |
| Product type | plug | |
| Coding | B | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Degree of protection (IP) | IP68 | |
| Thread size | M12 | |
| contact surface | gold-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
