76 6518 1111 00006-0200 | binder
Panel socket, M8, 6 pole, strand connection, screw locking, straight, 76 6518 1111 00006-0200
Unit Price (€ / pc.)
19.5755 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
19.58 € *
Price list
Quantity
Price per unit*
1 pcs.
19.5755 €
10 pcs.
18.3974 €
50 pcs.
17.2907 €
100 pcs.
16.2673 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor actuator cable, 76 6518 1111 00006-0200, binder

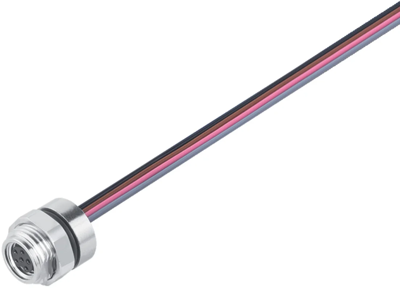

M8 Female panel mount connector, Contacts: 6, unshielded, single wires, IP67/IP69K, UL, M12x1.0, front fastened.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 6 pole | |
| Degree of protection (IP) | IP67/IP69K | |
| Version | cable 0.2 m | |
| Assembly | rear mounting | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Orientation | straight | |
| Type of locking | screw locking | |
| Contact connection | strand connection | |
| Thread size | M8 | |
| Product type | panel socket |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
