76 6321 1011 00404–0200 | binder

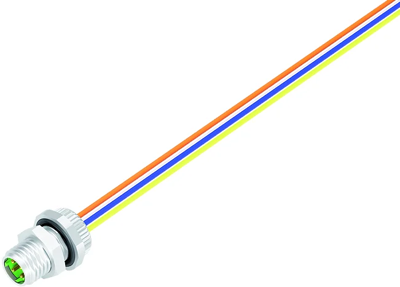

Panel plug, M8, 4 pole, strand connection, screw locking, straight, 76 6321 1011 00404–0200
Unit Price (€ / pc.)
20.5751 € *
Standard delivery time from the manufacturer is: 13 Weeks
Total Price:
20.58 € *
Price list
Quantity
Price per unit*
1 pcs.
20.5751 €
10 pcs.
18.7187 €
25 pcs.
17.0408 €
50 pcs.
15.5057 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor actuator cable, 76 6321 1011 00404-0200, binder
M8 Male panel mount connector, Contacts: 4, unshielded, single wires, IP67, M8 x 1.0, Front mounting.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | strand connection | |
| contact surface | gold-plated | |
| Assembly | rear mounting | |
| Additional parts | equipped | |
| Thread size | M8 | |
| Orientation | straight | |
| Degree of protection (IP) | IP67 | |
| Product type | panel plug | |
| Pin number | 4 pole | |
| Version | cable 0.2 m | |
| Type of locking | screw locking |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
