76 6218 1111 00006-0200 | binder

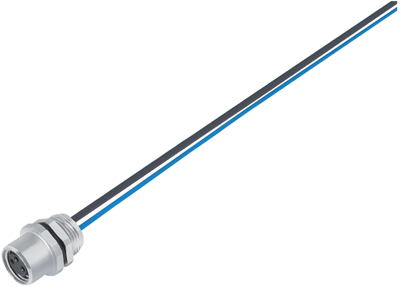

Panel socket, M8, 6 pole, strand connection, screw locking, straight, 76 6218 1111 00006-0200
Unit Price (€ / pc.)
19.7778 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
19.78 € *
Price list
Quantity
Price per unit*
1 pcs.
19.7778 €
10 pcs.
18.5878 €
50 pcs.
17.4811 €
100 pcs.
16.4339 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor actuator cable, 76 6218 1111 00006-0200, binder

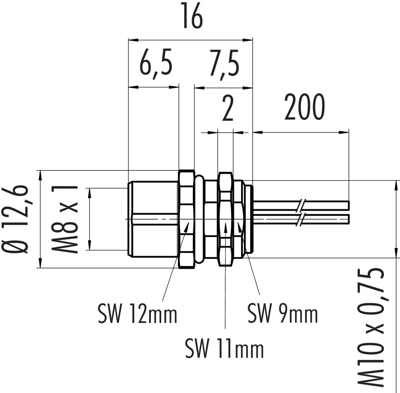

M8 Female panel mount connector, Contacts: 6, unshielded, single wires, IP67, UL, M10x0.75.
Technical specifications
| Pin number | 6 pole | |
| Degree of protection (IP) | IP67 | |
| Assembly | panel mounting | |
| Orientation | straight | |
| Version | cable 0.2 m | |
| Product type | panel socket | |
| Additional parts | equipped | |
| Type of locking | screw locking | |
| Contact connection | strand connection | |
| Thread size | M8 | |
| contact surface | gold-plated |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
