76 6119 1111 00006-0200 | binder

Panel plug, M8, 6 pole, strand connection, screw locking, straight, 76 6119 1111 00006-0200

Order No.: 70P1159
EAN: 4099891660093
MPN:
76 6119 1111 00006-0200
Series: 718

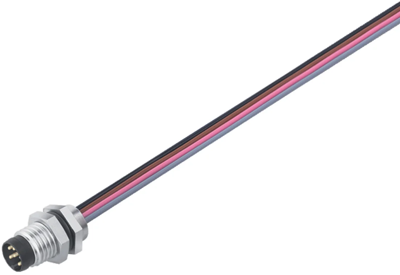

76 6119 1111 00006-0200 binder Sensor-Actuator Connectors Image 1

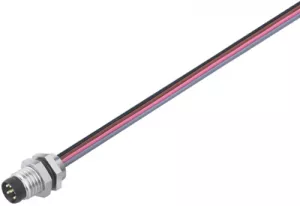

76 6119 1111 00006-0200 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
18.2308 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
18.23 € *
Price list
Quantity
Price per unit*
1 pcs.
18.2308 €
10 pcs.
17.1360 €
50 pcs.
16.1007 €
100 pcs.
15.1487 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor actuator cable, 76 6119 1111 00006-0200, binder

M8 Male panel mount connector, Contacts: 6, unshielded, single wires, IP67, UL, front fastened.

Technical specifications
Filter Property Value
Contact connection strand connection
Degree of protection (IP) IP67
Orientation straight
Assembly rear mounting
Additional parts equipped
Version cable 0.2 m
Pin number 6 pole
Type of locking screw locking
contact surface gold-plated
Thread size M8
Product type panel plug
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
