76 6019 0111 00008-0200 | binder

Panel plug, M8, 8 pole, strand connection, screw locking, straight, 76 6019 0111 00008-0200

Order No.: 70P1158
EAN: 4099891660086
MPN:
76 6019 0111 00008-0200
Series: 718

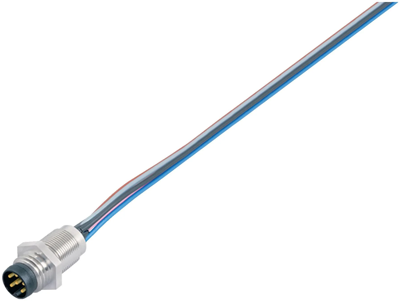

76 6019 0111 00008-0200 binder Sensor-Actuator Connectors Image 1
76 6019 0111 00008-0200 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
19.0638 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
19.06 € *
Price list
Quantity
Price per unit*
1 pcs.
19.0638 €
10 pcs.
17.9214 €
50 pcs.
16.8385 €
100 pcs.
15.8270 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor actuator cable, 76 6019 0111 00008-0200, binder

M8 Male panel mount connector, Contacts: 8, unshielded, single wires, IP67/IP69K, UL, M8x0.5.

Technical specifications
Pin number 8 pole
Degree of protection (IP) IP67/IP69K
Assembly panel mounting
Orientation straight
Version cable 0.2 m
Product type panel plug
Additional parts equipped
Type of locking screw locking
Contact connection strand connection
Thread size M8
contact surface gold-plated
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
