76 6019 0111 00006-0200 | binder

Panel plug, M8, 6 pole, strand connection, screw locking, straight, 76 6019 0111 00006-0200

Order No.: 70P1157
EAN: 4099891660079
MPN:
76 6019 0111 00006-0200
Series: 718
76 6019 0111 00006-0200 binder Sensor-Actuator Connectors Image 1
76 6019 0111 00006-0200 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
16.8147 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
16.81 € *
Price list
Quantity
Price per unit*
1 pcs.
16.8147 €
10 pcs.
15.6366 €
50 pcs.
14.5418 €
100 pcs.
13.5184 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor actuator cable, 76 6019 0111 00006-0200, binder

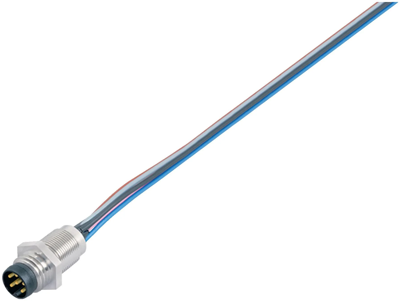

M8 Male panel mount connector, Contacts: 6, unshielded, single wires, IP67/IP69K, UL, M8x0.5.

Technical specifications
Pin number 6 pole
Degree of protection (IP) IP67/IP69K
Assembly panel mounting
Orientation straight
Version cable 0.2 m
Product type panel plug
Additional parts equipped
Type of locking screw locking
Contact connection strand connection
Thread size M8
contact surface gold-plated
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
