76 4332 0111 00012-0200 | binder

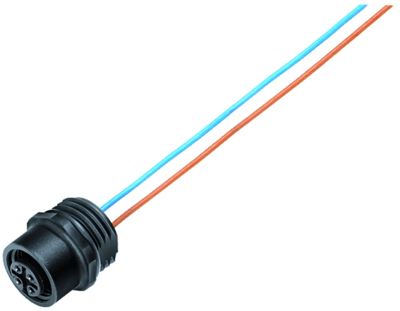

Panel socket, M12, 12 pole, strand connection, screw locking, straight, 76 4332 0111 00012-0200

Order No.: 70P2617
EAN: 4099891666101
MPN:
76 4332 0111 00012-0200
Series: 763
76 4332 0111 00012-0200 binder Sensor-Actuator Connectors Image 1
76 4332 0111 00012-0200 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
21.7294 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
21.73 € *
Price list
Quantity
Price per unit*
1 pcs.
21.7294 €
10 pcs.
20.4085 €
50 pcs.
19.1947 €
100 pcs.
18.0404 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor actuator cable, 76 4332 0111 00012-0200, binder

M12-A Female panel mount connector, Contacts: 12, unshielded, single wires, IP67, UL, M16x1.5.

Technical specifications
Filter Property Value
Thread size M12
Additional parts equipped
Pin number 12 pole
Orientation straight
Degree of protection (IP) IP67
Type of locking screw locking
Assembly panel mounting
Contact connection strand connection
contact surface gold-plated
Version cable 0.2 m
Product type panel socket
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
