76 2731 0111 00008-0200 | binder

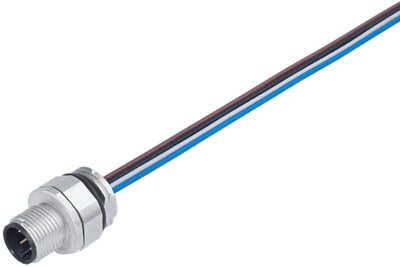

Panel plug, M12, 8 pole, strand connection, screw locking, straight, 76 2731 0111 00008-0200
Unit Price (€ / pc.)
35.7119 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
35.71 € *
Price list
Quantity
Price per unit*
1 pcs.
35.7119 €
10 pcs.
33.5580 €
25 pcs.
31.2018 €
50 pcs.
29.0122 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor actuator cable, 76 2731 0111 00008-0200, binder
M12-A Male panel mount connector, Contacts: 8, unshielded, single wires, IP68, UL, PG 9, stainless steel.
Technical specifications
| Pin number | 8 pole | |
| Degree of protection (IP) | IP68 | |
| Assembly | panel mounting | |
| Orientation | straight | |
| Version | cable 0.2 m | |
| Product type | panel plug | |
| Additional parts | equipped | |
| Type of locking | screw locking | |
| Contact connection | strand connection | |
| Thread size | M12 | |
| contact surface | gold-plated |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
