76 2531 1111 00012-0200 | binder

Panel plug, M12, 12 pole, strand connection, screw locking, straight, 76 2531 1111 00012-0200

Order No.: 70P2598
EAN: 4099891665951
MPN:
76 2531 1111 00012-0200
Series: 763
76 2531 1111 00012-0200 binder Sensor-Actuator Connectors Image 1
76 2531 1111 00012-0200 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
43.3755 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
43.38 € *
Price list
Quantity
Price per unit*
1 pcs.
43.3755 €
10 pcs.
40.7694 €
25 pcs.
37.9253 €
50 pcs.
35.2597 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor actuator cable, 76 2531 1111 00012-0200, binder

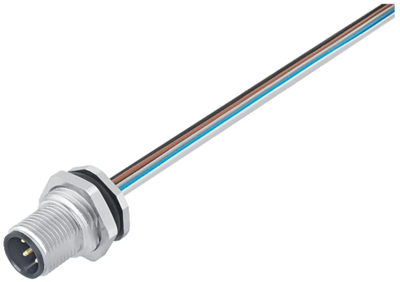

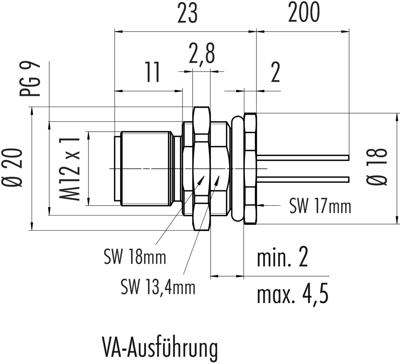

M12-A Male panel mount connector, Contacts: 12, unshielded, single wires, IP68, UL, PG 9, front fastened, stainless steel.

Technical specifications
Filter Property Value
Pin number 12 pole
Degree of protection (IP) IP68
Assembly panel mounting
Orientation straight
Version cable 0.2 m
Product type panel plug
Additional parts equipped
Type of locking screw locking
Contact connection strand connection
Thread size M12
contact surface gold-plated
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
