76 1031 1011 00008-0200 | binder

Panel plug, M12, 8 pole, strand connection, screw locking, straight, 76 1031 1011 00008-0200

Order No.: 71F2389
MPN:
76 1031 1011 00008-0200
Series: 763

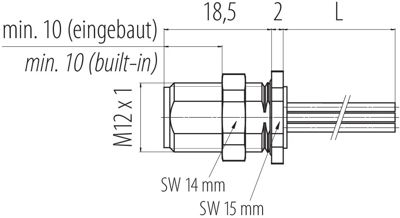

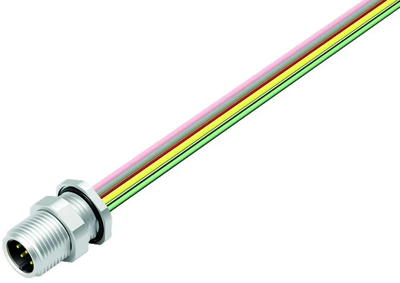

76 1031 1011 00008-0200 binder Sensor-Actuator Connectors Image 1
76 1031 1011 00008-0200 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
21.3724 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
21.37 € *
Price list
Quantity
Price per unit*
1 pcs.
21.3724 €
10 pcs.
20.3014 €
25 pcs.
19.6469 €
50 pcs.
18.6116 €
100 pcs.
16.6243 €
*incl. VAT plus shipping costs
Subject to prior sale

Flange connector, 76 1031 1011 00008-0200, binder

The 76 1031 1011 00008-0200 flange connector has been developed for applications in plant engineering, control and electrical equipment construction. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).

Technical specifications
Filter Property Value
Contact connection strand connection
Degree of protection (IP) IP68
Orientation straight
Assembly rear mounting
Additional parts equipped
Version cable 0.2 m
Pin number 8 pole
Type of locking screw locking
contact surface gold-plated
Thread size M12
Product type panel plug
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
