76 1031 1011 00005-0200 | binder

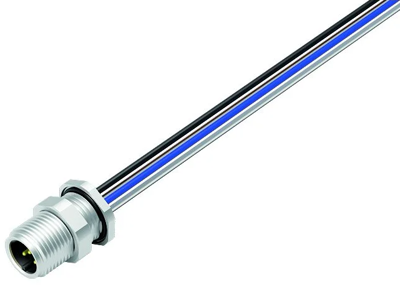

Panel plug, M12, 5 pole, strand connection, screw locking, straight, 76 1031 1011 00005-0200
Unit Price (€ / pc.)
14.8869 € *
Available: 2 pcs.
Total Price:
14.89 € *
Price list
Quantity
Price per unit*
1 pcs.
14.8869 €
10 pcs.
14.1372 €
25 pcs.
13.6850 €
50 pcs.
12.9591 €
100 pcs.
11.5787 €
*incl. VAT plus shipping costs
Subject to prior sale
Flange connector, 76 1031 1011 00005-0200, binder
The 76 1031 1011 00005-0200 flange connector has been developed for applications in plant engineering, control and electrical equipment construction. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel plug | |
| Version | cable 0.2 m | |
| Pin number | 5 pole | |
| Thread size | M12 | |
| Type of locking | screw locking | |
| Orientation | straight | |
| Contact connection | strand connection | |
| contact surface | gold-plated | |
| Additional parts | equipped | |
| Assembly | rear mounting | |
| Degree of protection (IP) | IP68 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
