76 1031 1011 00004-0200 | binder

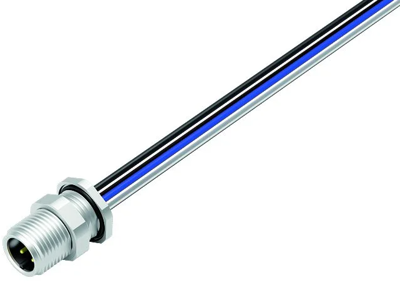

Panel plug, M12, 4 pole, strand connection, screw locking, straight, 76 1031 1011 00004-0200
Unit Price (€ / pc.)
13.2804 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
13.28 € *
Price list
Quantity
Price per unit*
1 pcs.
13.2804 €
10 pcs.
12.6140 €
25 pcs.
12.1975 €
50 pcs.
11.5549 €
100 pcs.
10.6981 €
*incl. VAT plus shipping costs
Subject to prior sale
Flange connector, 76 1031 1011 00004-0200, binder
The 76 1031 1011 00005-0200 flange connector has been developed for applications in plant engineering, control and electrical equipment construction. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Additional parts | equipped | |
| Type of locking | screw locking | |
| Pin number | 4 pole | |
| Thread size | M12 | |
| contact surface | gold-plated | |
| Degree of protection (IP) | IP68 | |
| Contact connection | strand connection | |
| Product type | panel plug | |
| Assembly | rear mounting | |
| Version | cable 0.2 m |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
