76 0932 0111 00008-0200 | binder

Panel socket, M12, 8 pole, strand connection, screw locking, straight, 76 0932 0111 00008-0200

Order No.: 70P1664
EAN: 4099891661526
MPN:
76 0932 0111 00008-0200
Series: 763

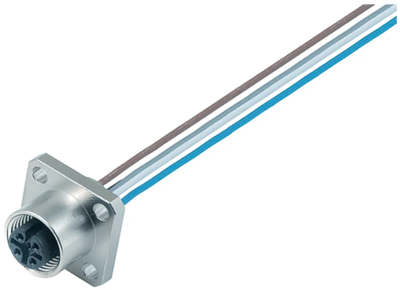

76 0932 0111 00008-0200 binder Sensor-Actuator Connectors Image 1
76 0932 0111 00008-0200 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
27.7627 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
27.76 € *
Price list
Quantity
Price per unit*
1 pcs.
27.7627 €
10 pcs.
26.0967 €
25 pcs.
24.5259 €
50 pcs.
23.0503 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor actuator cable, 76 0932 0111 00008-0200, binder

M12-A Square female panel mount connector, Contacts: 8, unshielded, single wires, IP40, UL, Square.

Technical specifications
Pin number 8 pole
Degree of protection (IP) IP40
Assembly panel mounting
Orientation straight
Version cable 0.2 m
Product type panel socket
Additional parts equipped
Type of locking screw locking
Contact connection strand connection
Thread size M12
contact surface gold-plated
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
